Settings

In this chapter we will learn about the settings UI in Phaser Editor.

You can open the settings dialog by clicking on the main menu, in the Settings option:

The settings dialog contains multiple tabs with different settings:

• Default Apps tab
• Keyboard tab
• Scene tab

There are settings that are stored globally, and others that are stored per project. In a following section we explain in details the different settings storages.

Default Apps settings

Phaser Editor may use external applications to do two main tasks:

• Open the game in a browser.
• Open the project in an external code editor.

In this tab, you can set the default applications to use for these tasks.

Default system browser

The Browser section contains the settings to open the game in a browser.

You can select the Use Default System Browser parameter to use the default system browser no matter the value of the other parameters:

Custom browser

If you want to use a specific browser, you can set the External Browser parameter to the path of the browser executable. It is important to write the path between quotes (") if it contains spaces. This is an example of path in macOS:

Copy"/Applications/Google Chrome.app/Contents/MacOS/Google Chrome"

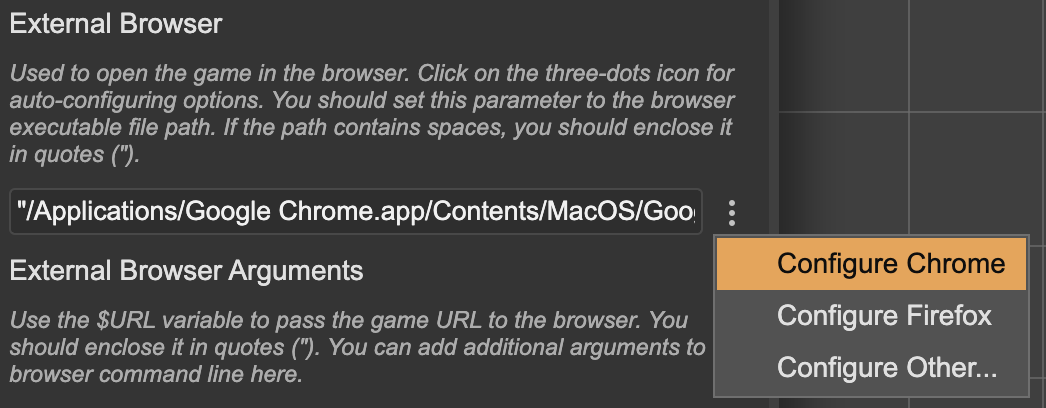

Note, in the right of the text field there is a three-dots menu with the following options:

• Configure Chrome - set a predefined path for Google Chrome.
• Configure Firefox - set a predefined path for Mozilla Firefox.
• Configure Other... - opens the system file chooser dialog to select the browser executable.

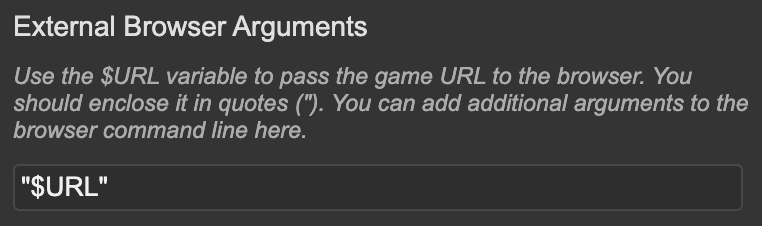

With the External Browser Arguments parameter, you can set the arguments to pass to the browser executable. The most important argument is the $URL variable, which contain the URL of the game to open:

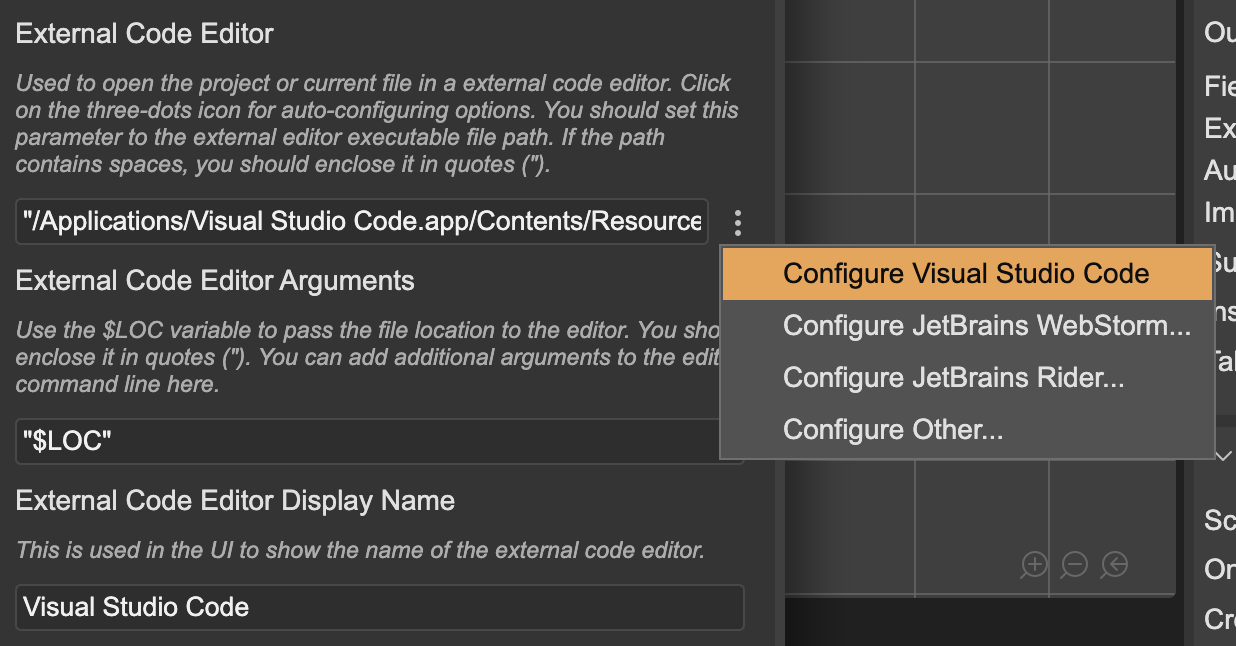

Custom code editor

In the External Code Editor section, you can set the default code editor to open the project files. The settings are similar to the browser settings. The External Code Editor parameter contains the path to the editor's executable. You should write the path between quotes (") if it contains spaces. This is an example of the Visual Studio Code path in macOS:

Copy"/Applications/Visual Studio Code.app/Contents/Resources/app/bin/code"

In the right of the text field there is a three-dots menu with the following options:

• Configure Visual Studio Code - set a predefined path for Visual Studio Code.
• Configure JetBrains WebStorm - set a predefined path for JetBrains WebStorm.
• Configure JetBrains Rider - set a predefined path for JetBrains Rider.
• Configure Other... - opens the system file chooser dialog to select the editor executable.

The External Code Editor Arguments parameter contains the arguments to pass to the editor executable. The most important argument is the $LOC variable, which contains the path of the file to open or the project's folder to open. You can add additional arguments.

The External Code Editor Display Name parameter is the name of the editor to display in the different places of the Phaser Editor's UI.

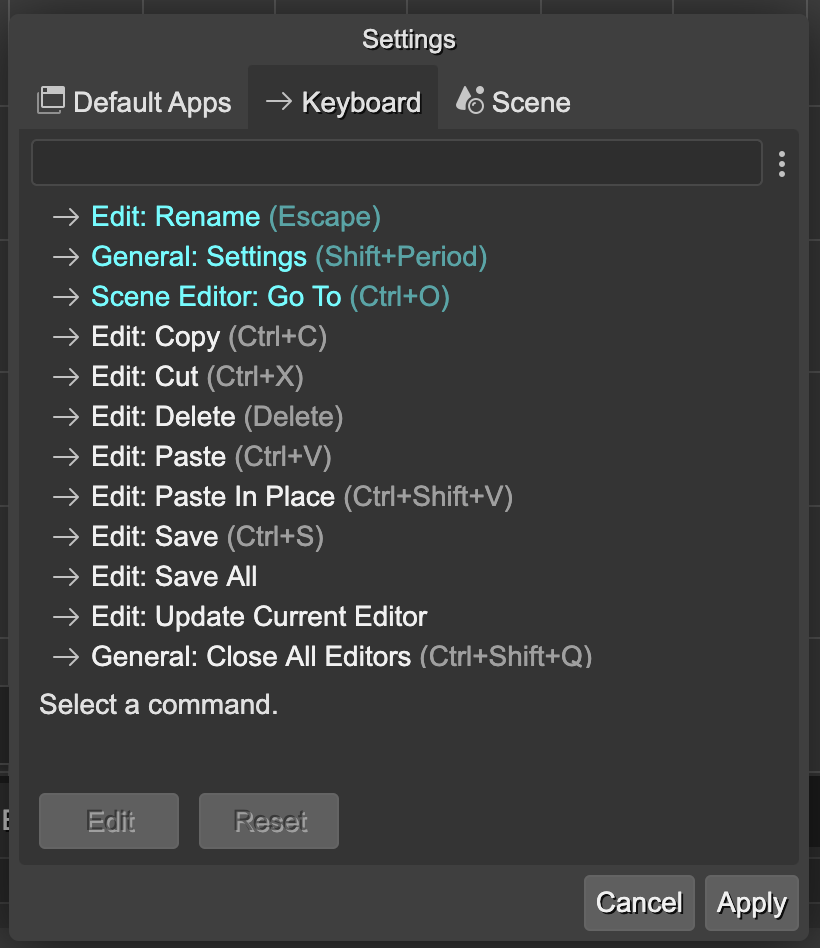

Keyboard settings

In the Keyboard tab, you can set the keyboard shortcuts for the different commands in the Phaser Editor. The settings are stored globally, so they are the same for all the projects.

The tab shows all the commands and their current shortcuts. The commands with a custom key binding are highlighted and shown at the beginning of the list.

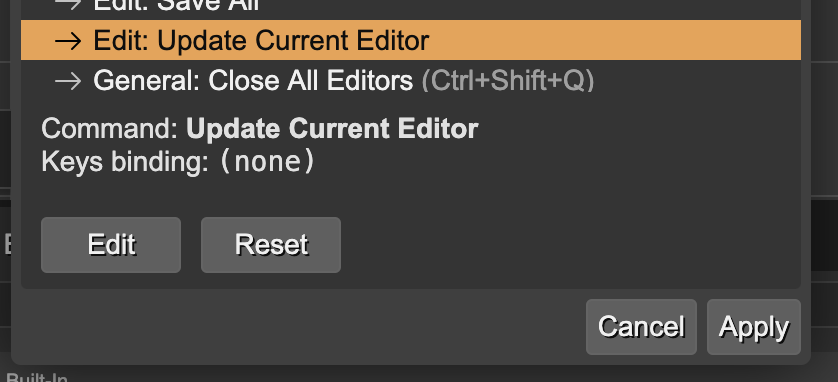

To change a shortcut, follow this steps:

• Select the command.
• Press the Edit button.
• Press the new key combination.
• If you want to cancel the change, press the Cancel button.

Also, you can reset the key bindings of a command by selecting it and pressing the Reset button.

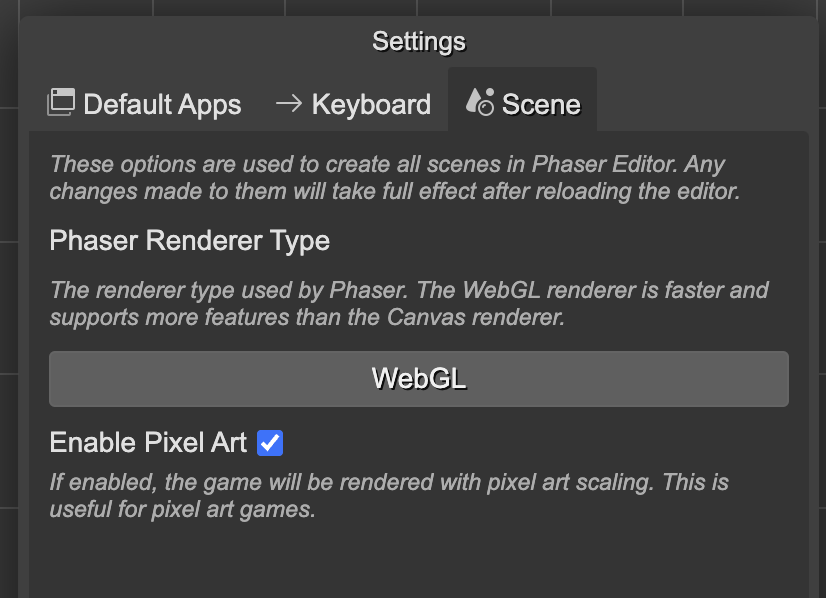

Scene settings

In the Scene tab, you can set the default properties of the scenes created in the Scene Editor.

The Phaser Renderer Type parameter is the renderer type to use in the scenes. The available options are: WebGL and Canvas.

The Enable Pixel Art parameter is a flag to enable the pixel art mode in the scenes. Tick this option of your game is pixel art.

The settings are stored per project, in the phasereditor2d.config.json file, so they are different for each project. Learn more about the project's configuration file.
